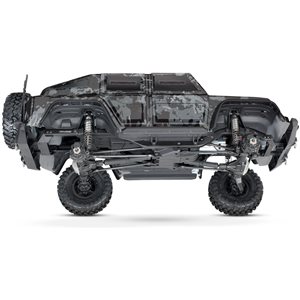

Traxxas TRX-4 Tactical Unit
The Tactical System's severe off-road ability depends on the innovation below its difficult camouflaged body.

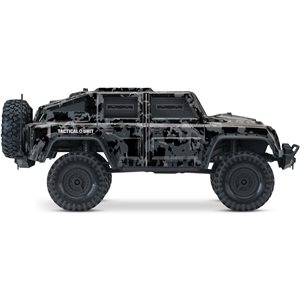

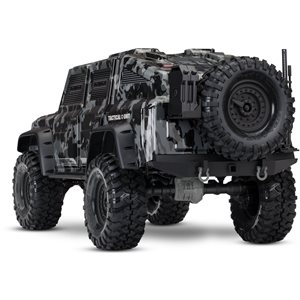

Tough Night-Camo Body
Lighter weight to lower CG and boost dexterity
Rugged fender flares
Front bumper with tow hooks and reproduction winch
Rear bumper with scale devices and practical extra tire
Complete Nylon composite wheel wells and flooring pans
Trail-tuned XL-5 HV Water Resistant Electronic Speed Control
Completely water resistant style
5 drive profiles
Sport Mode - forward / brake / reverse
Race Mode - forward / brake / no reverse
Training ModeT - 50% forward / 100% brake / 50% reverse (trademarked)
Path Mode - forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode - forward / immediate reverse - no neutral with 100% hill holding brake
Traxxas EZ-Set® one-button setup
Big, effective heat sink
Wide voltage latitude 6-7 cell NiMH (7.2-8.4V) and 2-3S LiPo (7.4-11.1V)
2 phase low voltage security (LVD)
Motor
Effective TitanT 21T reverse rotation motor with internal cooling fan
Accuracy, predetermined equipment mesh modifications
Motor retention different from equipment mesh

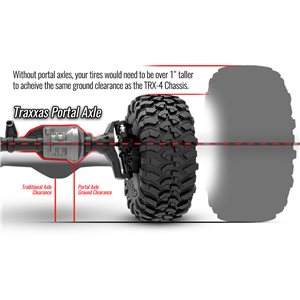

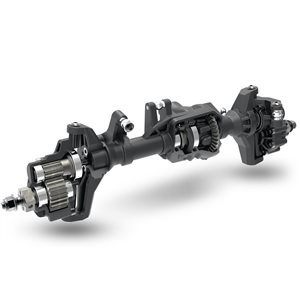

Website Axles
Boost ground clearance (3.14")
Get rid of torque twist
Steel equipments
Enhance axle geometry and minimize stress on driveshafts

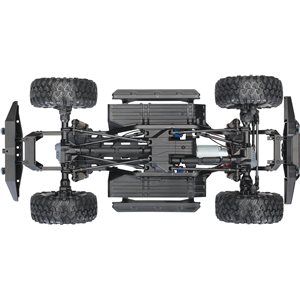

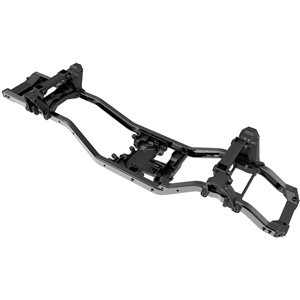

Stiff Steel Frame
1.5mm thick steel frame rails increase torsional rigidty
Ingenious style enables 4 wheelbase positions (300mm, 312mm, 324mm, 336mm)
Adjustable rear shock tower positions for SWB and LWB setups
Bumpers change fore and aft
Rugged rock rails change for width
Wire routing clips incorporated into frame rails
Drivetrain
Full-time shaft owned 4-wheel drive
Difficult 6mm stub axles
Steel front CVDs
Solidified steel rear axle shafts

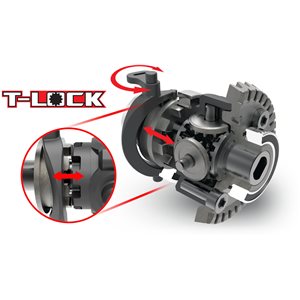

Remote locking steel equipment differentials with cable-actuation
Steel equipment transfer case
Ingenious Battery Compartment
Hinged battery strap enables fast and simple battery gain access to
No pins to lose
Accommodates various height batteries
Accepts full-size long battery loads
Integrated compartment accepts smaller sized 1/16 scale batteries (with optional strap)

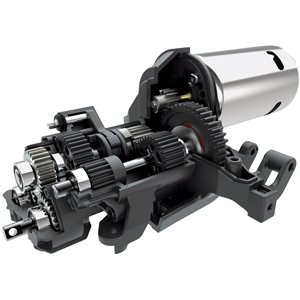

Transmission
2 speed high/low variety with remote moving
All metal equipments
Double horizontal shafts
Twin friction plate slipper clutch
Quickly eliminated for maintenance
Steering
Chassis installed 2075X metal equipment digital servo

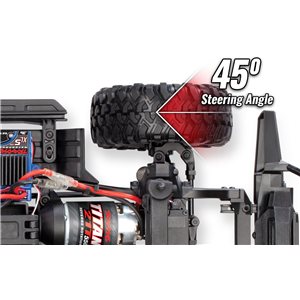

Superior 45° guiding angle
Direct steering (no servo saver)
Steering geometry fixed for bump guide
Suspension
Front - 3 relate to panhard
Rear - Triangulated 4 link
Durable rod ends with steel hollow balls
5mm size steel link rods with 4mm threaded ends

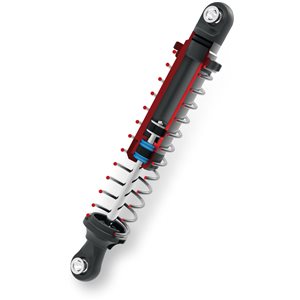

Aluminum GTS Shocks
Oil-filled coilover GTS shocks special to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars quickly change trip height
Silky smooth damping for the most difficult tracks
O-ring cap seal and double X-ring shaft seals
Wheels and Tires
1.9" Canyon Path tires with trail-tuned foam inserts
Pre-glued and installed to difficult black scale wheels
Path tuned S1 rubber substance
12mm steel hex
Transmitter
TQiT 2.4GHz 4-channel transmitter
Traxxas Link allowed
Telemetry prepared #6533 5-channel micro receiver with failsafe
Immediately shops and loads settings for as much as 30 Traxxas Link allowed designs
Special Cruise Control function for prolonged path owning
Adjustable steering and throttle level of sensitivity (rapid)
Adjustable steering and throttle endpoints
High 13ms frame rate and near-zero latency for responsive control
Trademarked O-Ring sealed water tight receiver box keeps the micro receiver dry

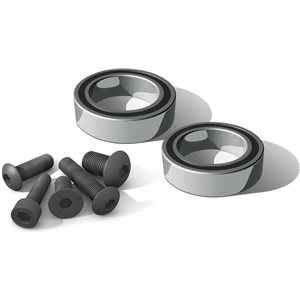

Sealed Ball Bearings
Hex hardware with rust-resistant black oxide finish
Specifications:
Length: 23.07 inches (586mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 6.9pound (3.129kg)
Height: 9.92 inches (252mm)
Wheelbase: 12.75 inches (324mm)
Technique Angle: 53.17°
Departure Angle: 41.67°
Breakover Angle: 56.97°
Front Shock Length: 3.54 inches (90mm)
Back Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Back Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electrical): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Moving
Equipment Pitch: 32P
Differential Type: 4 Equipment, Remote Locking
Chassis Structure / Product: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic "Hill Hold"
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Equipment
Transmitter: TQi 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Ability Level: 2
Battery Tray: 158.75 L x 47 W x 23/26mm H
Brand: Traxxas
