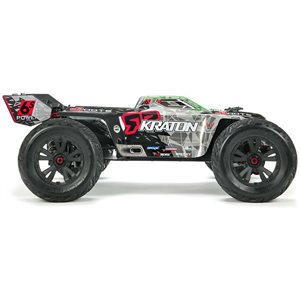

Arrma Kraton BLX Green
Key Features

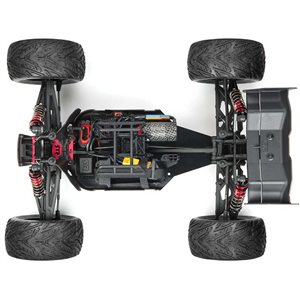

Chassis: 0.12" (3mm) thick aluminum, black in color
Drive: Four wheel with CVD driveshafts
Radio: Tactic TTX300 2.4GHz 2-channel
Steering Servo: ADS-15M waterproof, 195 oz-in (149 kg-cm) torque @6V,
0.16sec speed @6V, metal gear, 25 tooth spline output
Motor: BLX4074 2050Kv 4-pole brushless
ESC: Waterproof BLX185 150A 6S with built-in cooling fan, and male
XT90 connector
Radio Box: New design routes ESC & receiver wires through a rubber
seal to avoid pinching when lid is replaced, receiver is attached
to a plate that slots into receiver box base, one-piece rubber
seal seals out water and dirt
Shocks: 16mm red anodized aluminum body, oil filled, aluminum top
and bottom caps, 0.16" (4mm) diameter shaft, new high spring perch
Shock Towers: 0.20" (5mm) thick aluminum, black in color
Suspension: Pivot ball with anti-roll bar
Differentials: Three metal gear
Roll Cage: Composite internal
Body: Trimmed and painted polycarbonate, nylon rear wing
Motor Mount: Aluminum
Battery Tray: From the Outcast 6S, with front to back battery strap,
wire routing clips, balance plug stowage, higher sides for better
fit, and front upper cap that adjusts to battery height when
battery strap is tightened
Tires: dBoots Minokawa, width: 3.3" (85mm), diameter: 6.2" (157mm)
Wheels: Five split spoke, black in color 17mm hex, diameter: 3.8"
(97mm), width 2.6" (66mm)
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when viewed from front or behind
vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to
the chassis
Needed to Complete
AA Batteries: Four for transmitter
Two 2-3S 5000mAh 35C minimum LiPo with XT90
connector, Onyx 11.1V 5000mAh 35C batteries recommended, or one
4-6S LiPo battery
Suitable Battery charger
LiPo charging sack, structure and track devices
Exactly what remains in package?

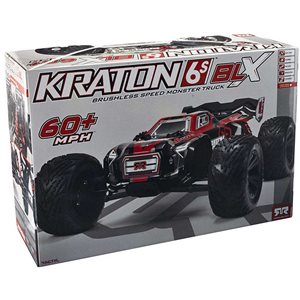

(1) RTR Kraton 6S BLX Speed Truck with Painted Body, 2.4GHz Radio,
Waterproof Steering Servo and Receiver Box, BLX185 ESC, 2050Kv
Brushless Motor, 12T Pinion Equipment, (2) XT90
Battery Connectors and Bridging Wire for single pack usage
(1) User Handbook
Specifications
Lorry
Length: 23.39 in (594mm)
Front and Back Width: 18.11 in (460mm)
Height: 7.68 in (195mm)
Wheelbase: 14.84 (377mm)
Flight Height: 1.85" (47mm)
Weight: 9.15pound (4.5kg)
Optimum Battery Tray Dimensions: 6.22 x 2.76 x 1.89"
(158 x 70 x 49mm)
Body
Length: 18.6" (472mm)
Width: 8" (203mm) behind front wheels, narrowest point
Width: 10.03" (255mm) at rear wheels, best point
Height: 6.25" (159mm)
Brand: ARRMA
